Pen-plotter

class: middle

# What can you
            # do with the
            # pen-plotter?

---

# Agenda


            --
            1. Setup

            --
            2. Plotting with InkScape

            --
            3. Command Line Interface

---

             class: middle

# Setup

            ---

# Setup

* The pen-plotter is capable of plotting in A3

--

            * bring your own pens when you want to plot (the only limit is the diameter, ca. 2cm)



            ---

# Setup

            --

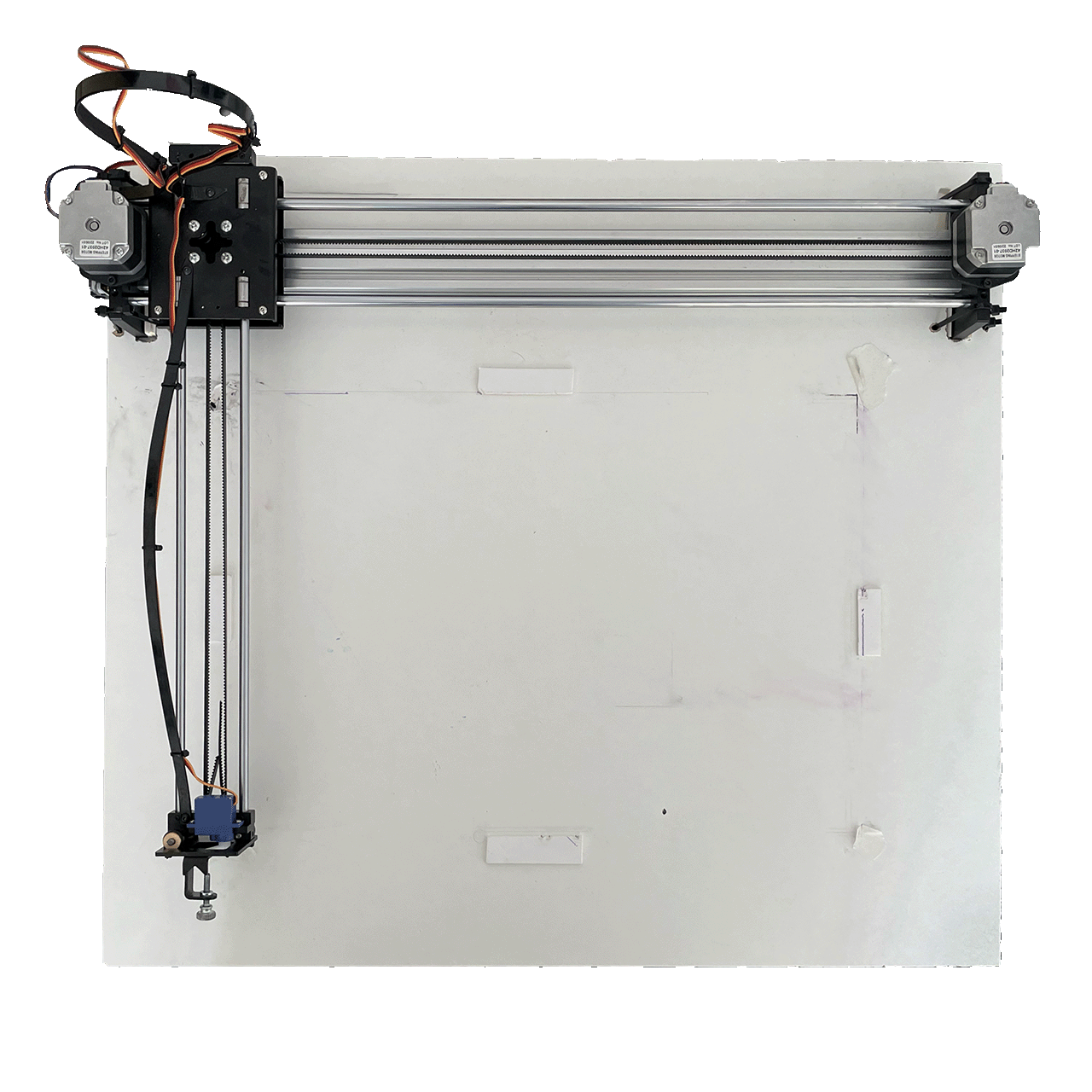

            * this is how it looks:

            .right[![The pen-plotter](img/plotter_min.png)]

---

            class: middle

# Plotting with InkScape

            ---

            # Plotting with InkScape

            * [InkScape](https://inkscape.org/) is an open source vector graphics app (comparable to Adobe Illustrator or Affinity Designer)

            --

            * You need to install some [additional software](https://drive.google.com/drive/folders/1mDPv3P24jBe4Dkz6jCn9UlGHwQM1bb9V) to use the plotter with InkScape

            --

                * please follow the provided installation guide all through to the end

---


            # Plotting with InkScape

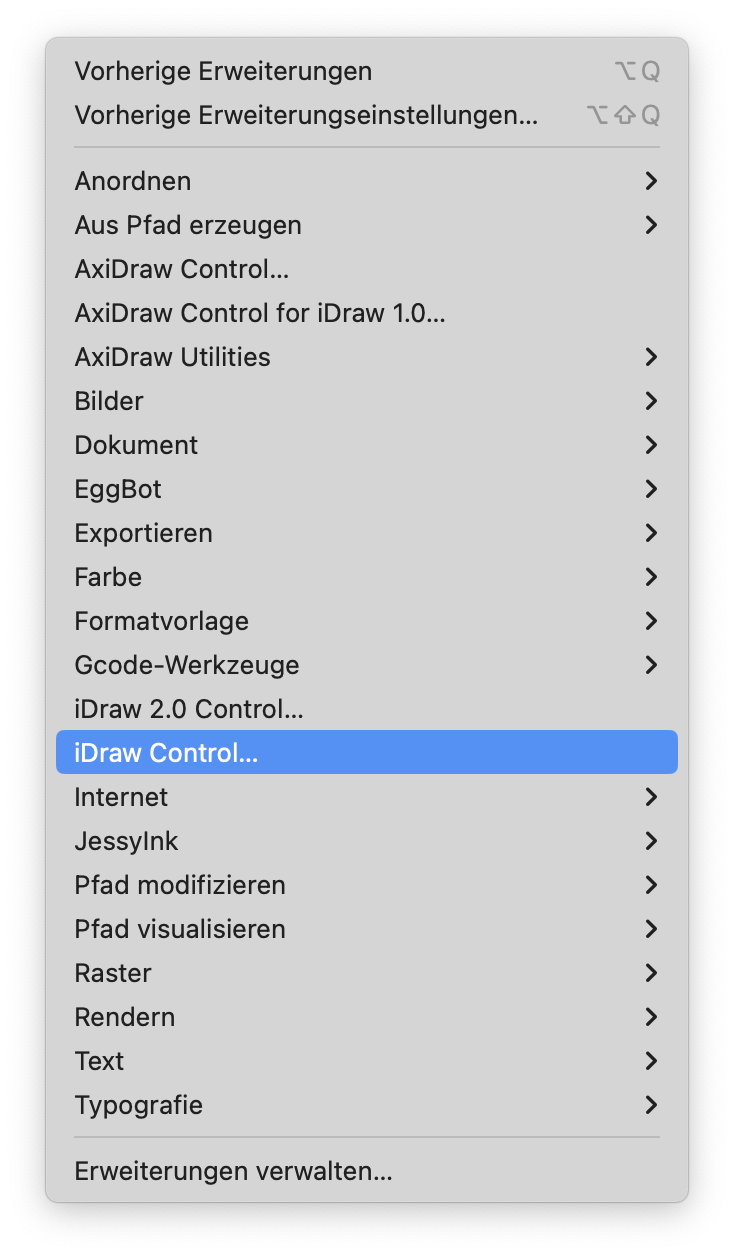

            * Once everything is installed, you find `iDraw Controls` in your Extensions panel


            .right[![The Extension panel in InkScape showing the iDraw Controls](img/iDraw-Controls.png)]


            ---


            # Plotting with InkScape

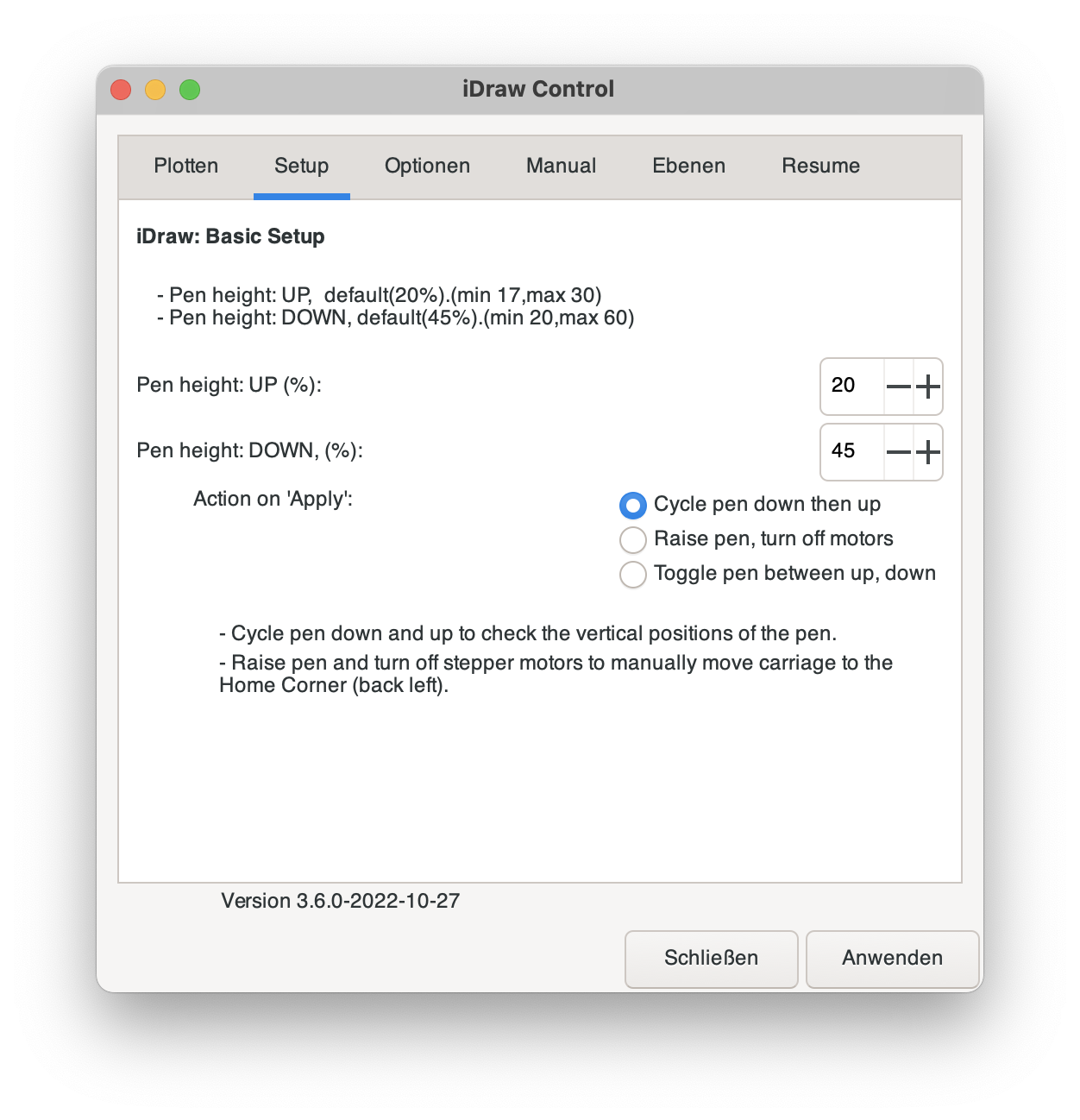

            * The first thing to verify is the basic setup

            --

            * plug the plotter to your computer and to a power source

            --

            * here you can set up the pen up and down position

            --

            .right[![The Extension panel in InkScape showing the iDraw Controls](img/general-options.png)]

            ---

            # Plotting with InkScape

            * A few notes:

--

                * best practice is to test the pen up and down positions in all for edges of the paper to avoid smearing

                * take a look at all the other tabs in the settings as well to experiment with writing speeds, etc.


            * A video turorial can be found [here](https://www.youtube.com/watch?v=tphcpTOt0PE)

            ---

            # Plotting with InkScape

            * Advanced notes:

--

                * you can use advanced settings during your plot such as changing speeds for different layer. More about this in [this handbook](https://wiki.evilmadscientist.com/AxiDraw_Layer_Control)

            ---

            class: middle

# Command Line Interface

            ---

            # Command Line Interface

            * Motivation:

                * Plotting multiple files in one go while having influence on plotter parameters

                * Using the plotter interactively


            ---

            # Command Line Interface

            * Installation (Mac only):

            --

                * Install a [recent version of Python](https://www.python.org/downloads/macos/) (>3.1)

                * Install the AxiDraw Command Line Interface:

                    * open Terminal on your Mac

                    * `python -m pip install https://cdn.evilmadscientist.com/dl/ad/public/AxiDraw_API.zip` and hit enter

            ---

            # Command Line Interface

            * Let’s construct a little script to use the plotter:

                * first we need to import the plotter tools like so:

                `from pyaxidraw import axidraw`
                `ad = axidraw.AxiDraw()`

                * we can import svgs like so:

                `ad.plot_setup("path/to/testfile.svg")`

                * setup the pen up and down positions:

`ad.options.pen_pos_down = 45`
                `ad.options.pen_pos_up = 20`

            ---

                * you can print layer by layer, using the layers mode:

`ad.options.mode = "layers"`

* and then plot the first layer in this case with acceleration set to 100

                `ad.options.layer = 1`
                `ad.options.accel = 100`
                `ad.plot_run()`

---
            # Command Line Interface

            * The whole script looks as follows:

            `from pyaxidraw import axidraw`
            `ad = axidraw.AxiDraw()`

            `ad.plot_setup("path/to/testfile.svg")`
            `ad.options.pen_pos_down = 45`
            `ad.options.pen_pos_up = 20`

`ad.options.mode = "layers"`

`ad.options.layer = 1`
            `ad.options.accel = 100`
            `ad.plot_run()`


            ---
            # Command Line Interface

            * More commented scripts can be found in [this sample directory](https://github.com/haw-type-design/newpage-x-y/tree/main/pen-plotter/sample-scripts)
